The MCI Gel™ hydrophobic interaction columns and resins are based on polyhydroxymethacrylate functionalised with Phenyl, Butyl or Ether. The relative hydrophobicity of these resins is as follows phenyl > butyl > ether. The columns are packed with 10 µm bead size and the resins are available with bead sizes of 10 µm and 30 µm.
On this page: List of available columns and resins followed by some sample chromatograms.
CQH-S series hydrophobic interaction chromatography columns
| Article Nr. | Column Type | Dimensions (mm) | Particle Size (µm) | Functional Group |
|---|---|---|---|---|
| 0216-01 | MCI Gel™ CQH3BS | 7.5 x 75 | 10 | Butyl |
| 0217-01 | MCI Gel™ CQH3ES | 7.5 x 75 | 10 | Ether |
| 0218-01 | MCI Gel™ CQH3PS | 7.5 x 75 | 10 | Phenyl |
CQH-series hydrophobic interaction chromatography resins
| Article Nr. | Type | Packing Size | Particle Size (µm) | Pore Size (nm) | Functional Group |
|---|---|---|---|---|---|
| 1216-01 | MCI Gel™ CQH3BS | 10 | 10 | 60 | Butyl |
| 1216-02 | MCI Gel™ CQH3BS | 25 | 10 | 60 | Butyl |
| 1216-03 | MCI Gel™ CQH3BS | 50 | 10 | 60 | Butyl |
| 1217-01 | MCI Gel™ CQH3ES | 10 | 10 | 60 | Ether |
| 1217-02 | MCI Gel™ CQH3ES | 25 | 10 | 60 | Ether |
| 1217-03 | MCI Gel™ CQH3ES | 50 | 10 | 60 | Ether |
| 1218-01 | MCI Gel™ CQH3PS | 10 | 10 | 60 | Phenyl |
| 1218-02 | MCI Gel™ CQH3PS | 25 | 10 | 60 | Phenyl |
| 1218-03 | MCI Gel™ CQH3PS | 50 | 10 | 60 | Phenyl |
| 1226-01 | MCI Gel™ CQH3BP | 25 | 30 | 60 | Butyl |
| 1226-02 | MCI Gel™ CQH3BP | 100 | 30 | 60 | Butyl |
| 1226-03 | MCI Gel™ CQH3BP | 1000 ml (!) | 30 | 60 | Butyl |
| 1227-01 | MCI Gel™ CQH3PP | 25 | 30 | 60 | Phenyl |
| 1227-02 | MCI Gel™ CQH3PP | 100 | 30 | 60 | Phenyl |
| 1227-03 | MCI Gel™ CQH3PP | 1000 ml (!) | 30 | 60 | Phenyl |

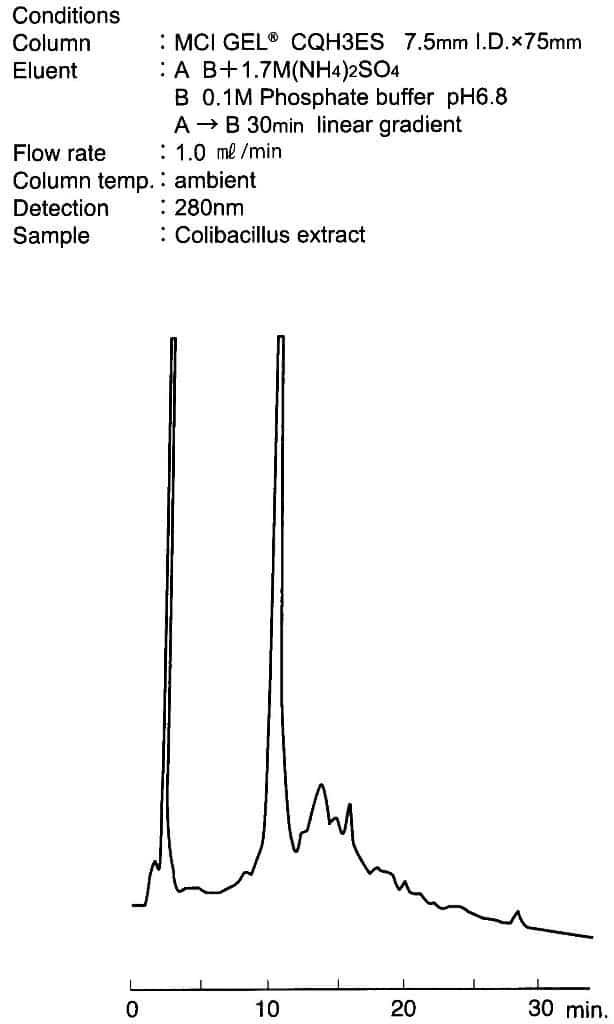

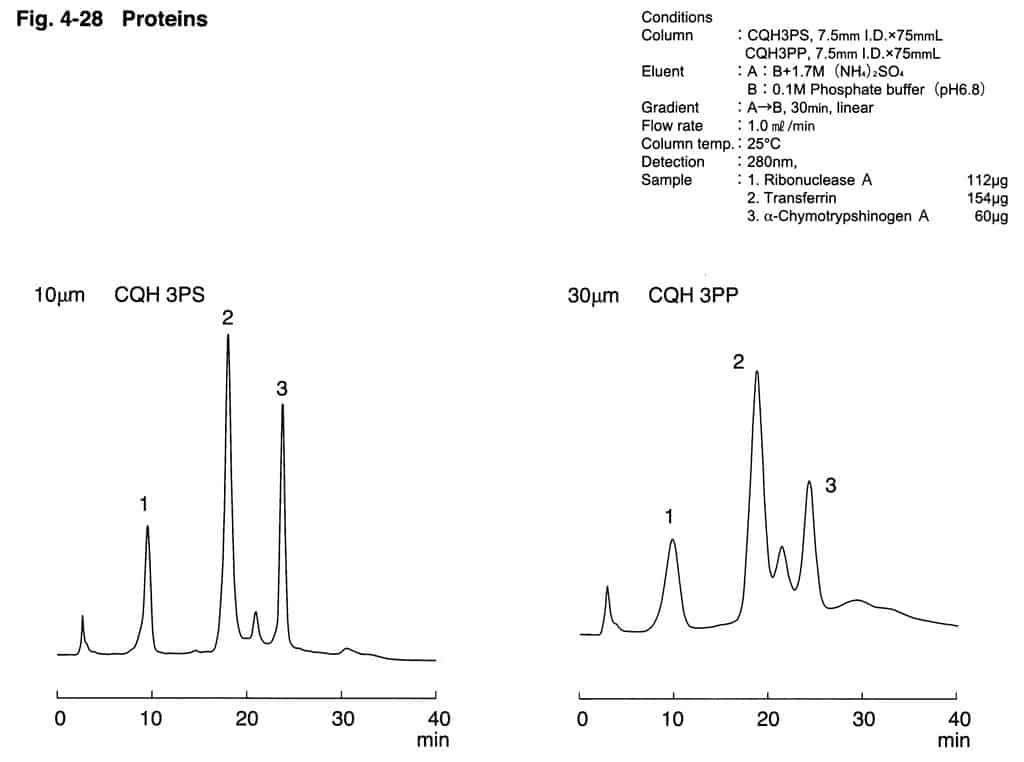

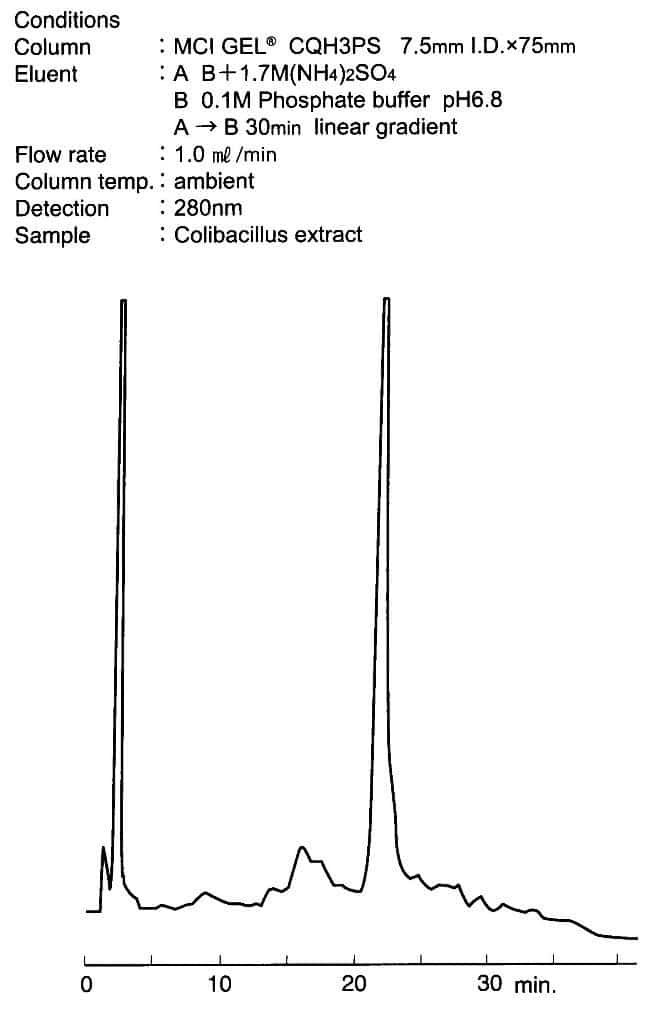

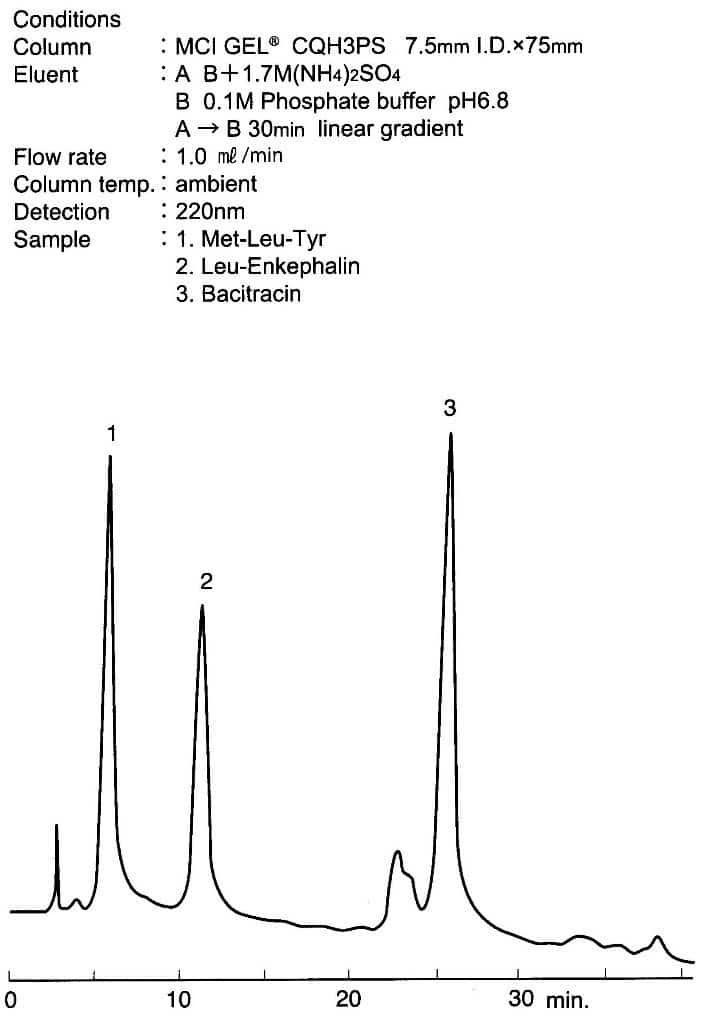

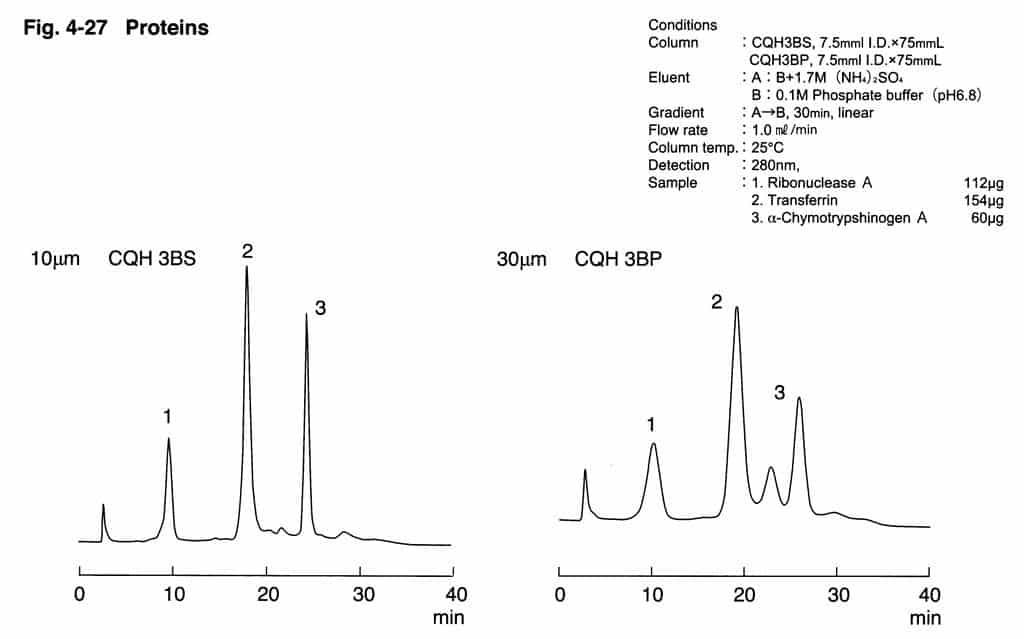

Sample chromatograms hydrophobic interaction columns and resins:
