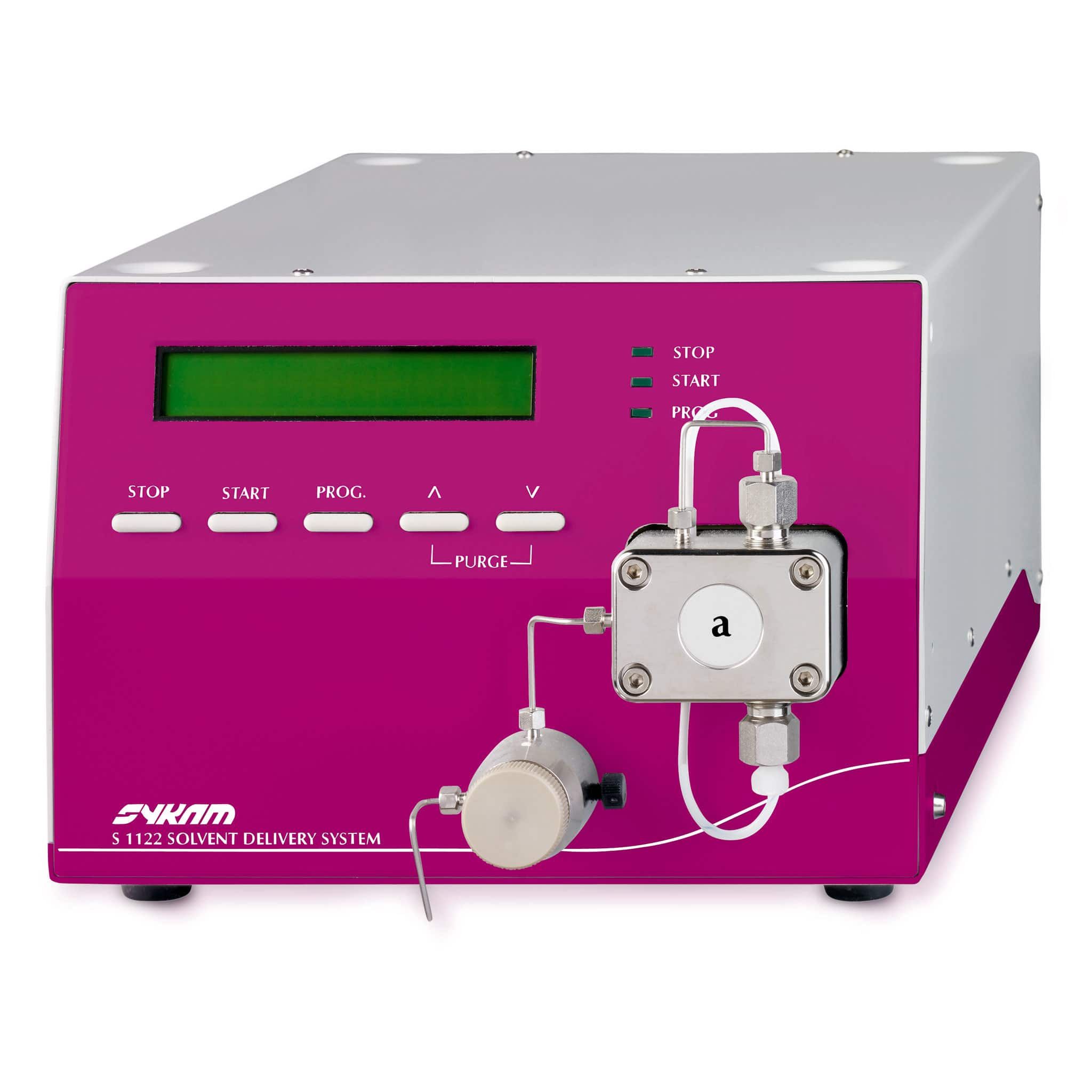

S 1122 Isocratic HPLC Pump

The Sykam S 1122 Isocratic HPLC Pump can be operated as stand-alone unit with a wide range of analog and digital inputs/outputs or as fully computer controlled pump for highly integrated and automated systems.

SKU: S1122 Category: Tags: ,
Sykam Logo

Description

The Sykam S 1122 Isocratic HPLC pump can be configured to the users’ needs with a micro-, analytical-, or preparative pump-head each available as stainless-steel or bio-inert PEEK versions. These HPLC pumps can be operated as stand-alone units with a wide range of analog and digital inputs/outputs or as fully computer controlled pumps for highly integrated and automated HPLC systems.

The Sykam S 1122 Isocratic HPLC pump is a compact dual piston pump with the same choice of pumpheads as the S 2100 HPLC pump. The S 1122 can be used as a simple stand-alone isocratic pump or can be configured with an additional low pressure binary gradient system. A high pressure binary gradient system can be configured by applying two S 1122 pumps into a stand-alone or fully computer controlled system. The use of additional low-pressure Sykam switching valves enables the use of two or more mobile-phases for each pump to enable easy switching between application methods.

Icon

Sykam HPLC Classic System Brochure 2.36 MB 92 downloads

The Sykam HPLC Classic System Chromatographs are modular systems optimised to the...

Additional information

Dimensions49.5 × 29.7 × 19.8 cm
Solvent delivery method

Dual piston in series with two checkvalves

Operation mode

Constant flow mode, constant pressure mode

Pressure-flow property

0.01 to 10 ml/min (analytical), 0.01 to 4.00 ml/min (micro), 0.2 to 40 ml/min (preparative)

Operational pressure

(0 – 6000 psi), 0 – 40 MPa

External control

Analog voltage control, PC-control by Clarity CB20 board

Stand-alone operation

Fully programmable
