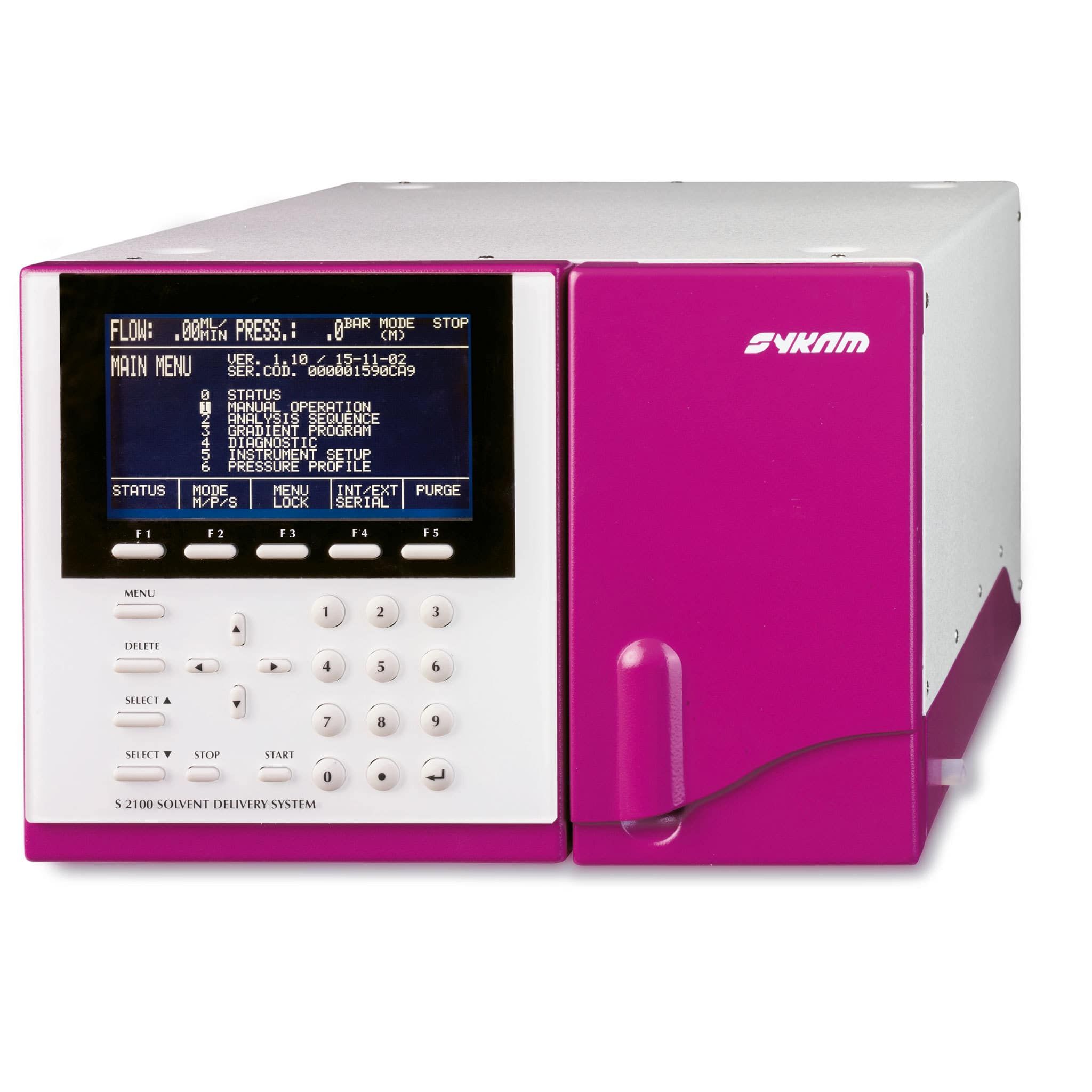

S 2100 Quaternary Gradient HPLC Pump

The Sykam S 2100 Quaternary Gradient HPLC Pump offers the user a solvent delivery system with maximum reliability, easy maintenance and virtually no limits to the type of HPLC applications that need to be run.

Sykam Logo

Description

The Sykam S 2100 Quaternary Gradient HPLC Pump can be configured to the users’ needs with a micro-, analytical-, or preparative pump-head each available as stainless-steel or bio-inert PEEK versions. These HPLC pumps can be operated as stand-alone units with a wide range of analog and digital inputs/outputs or as fully computer controlled pumps for highly integrated and automated HPLC systems.

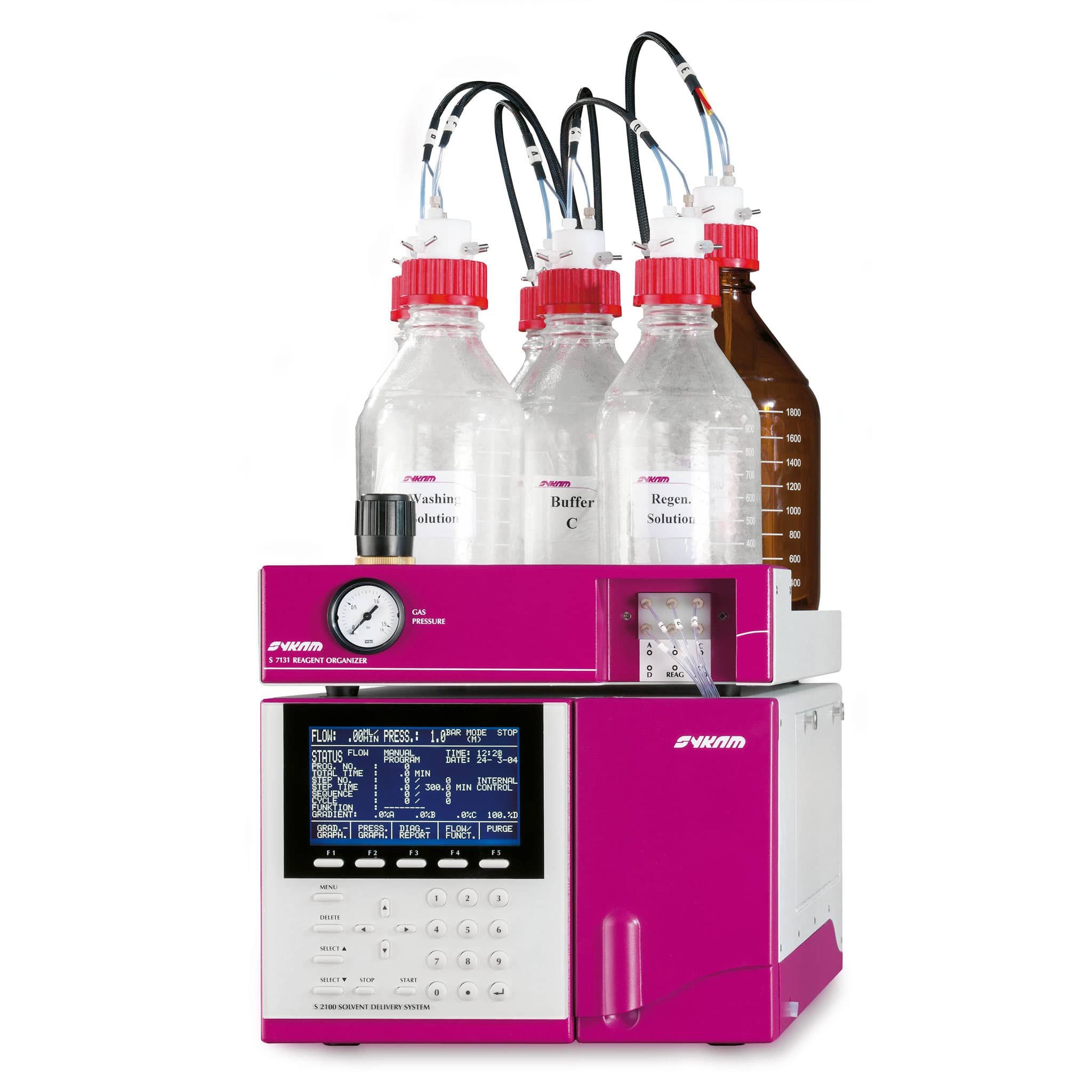

The Sykam S 2100 Quaternary Gradient HPLC Pump offers the user a solvent delivery system with maximum reliability, easy maintenance and virtually no limits to the type of HPLC applications that need to be run. A choice of six pumpheads, an optional built-in degasser and a reagent organizer with inert-gas connection for each mobile phase, makes it possible to adapt and configure the S 2100 to your current and changing needs. The robust mechanics and a – nowadays virtually unique – stainless steel housing of the S 2100 combined with attractive pricing makes the S 2100 an attractive proposition for the HPLC chromatographer.

Additional information

Dimensions45 × 31 × 21 cm
Solvent delivery method

Dual piston in series with two checkvalves

Operation mode

Constant flow mode, constant pressure mode

Pressure-flow property

0.01 to 10 ml/min (analytical), 0.01 to 4.00 ml/min (micro), 0.2 to 40 ml/min (preparative)

Operational pressure

(0 – 6000 psi), 0 – 40 MPa

External control

Analog voltage control, RS-232 for full computer control

Stand-alone operation

Fully programmable
