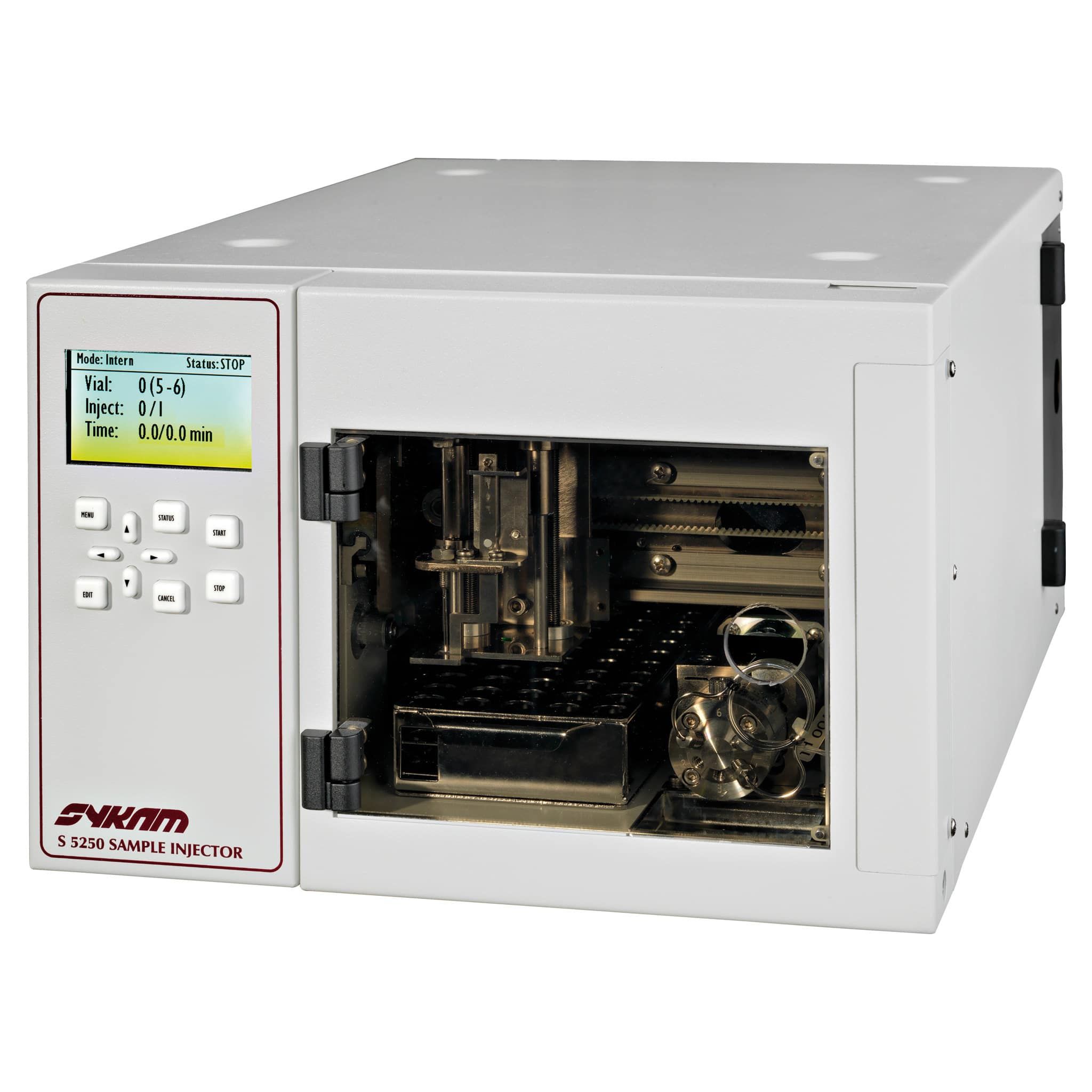

S 5250 Sample Injector

The S 5250 Sample Injector with extra small footprint is an ideal partner for automating virtually any HPLC system that needs to be upgraded with an autosampler.

Sykam Logo

Description

The S 5250 Sample Injector with a sample capacity of 60 standard (12 x 32 mm) vials or 96 with a microtiter plate, is the smallest of the three autosamplers of the Sykam HPLC range. The small footprint of only 310 x 210 x 478 mm (HxWxD) in combination with excellent specifications and almost maintenance free mechanics makes this autosampler an ideal partner for automating not only Sykam HPLC systems but virtually any HPLC system that needs to be upgraded with an autosampler.

Additional information

Dimensions47.8 × 21 × 31 cm
Sampling system

X-Y-Z operation with direct needle to valve injection

Variable injection volume

0.1 – 999.9 µl

Injection modes

fixed-loop, variable loop, zero waste injection

Concept

Double needle, pierce septum before entering sample needle

Pre-column derivatisation

Optional

Sample dilution possibility

Optional

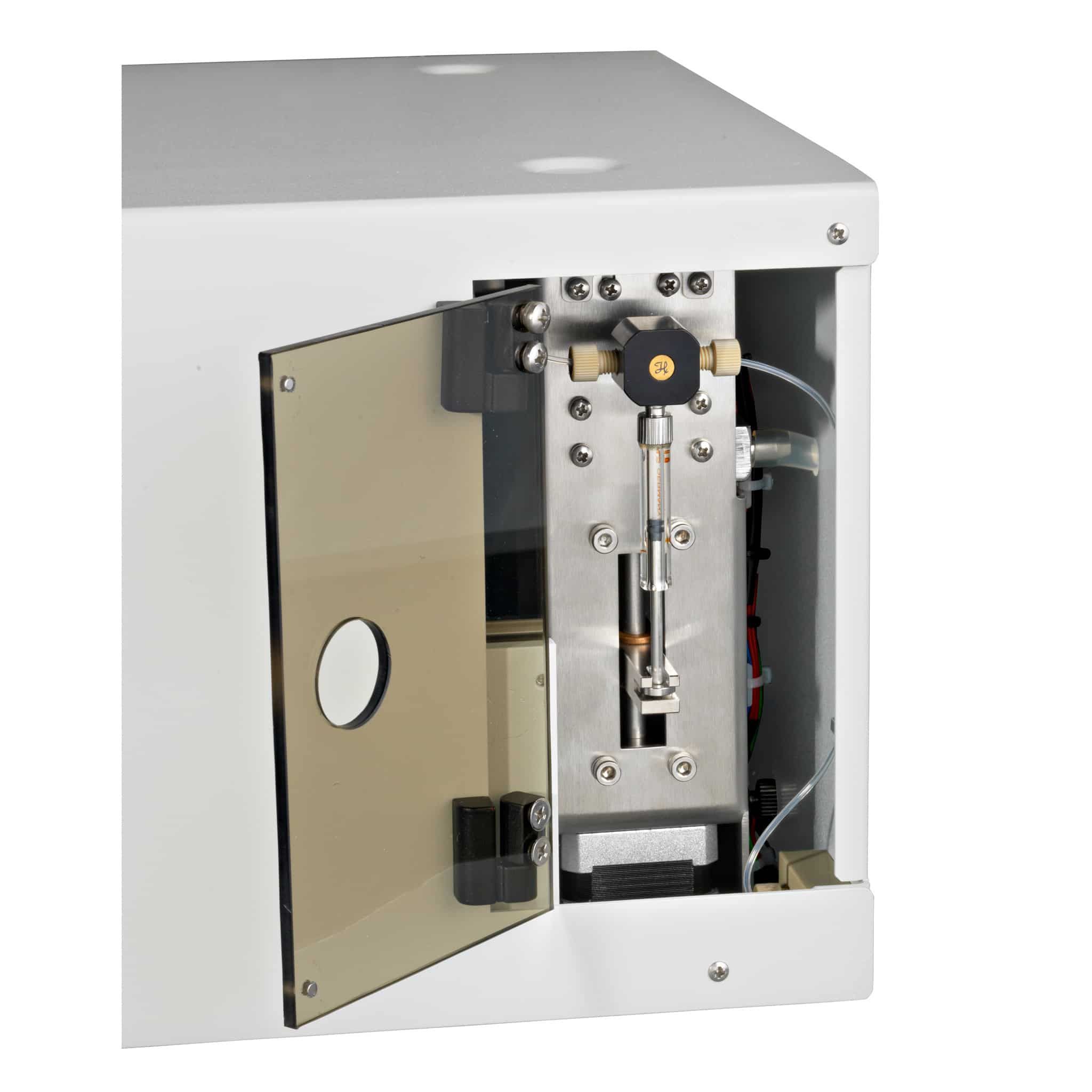

Accessible without removing covers

Injection valve, dosing syringe

Programmable

As stand-alone unit, full PC-control
