S 150 Ion Chromatography System Module

Path: Home > Product Shop > Instruments > Ion Chromatographs > Sykam S 150 System > S 150 Ion Chromatography System Module

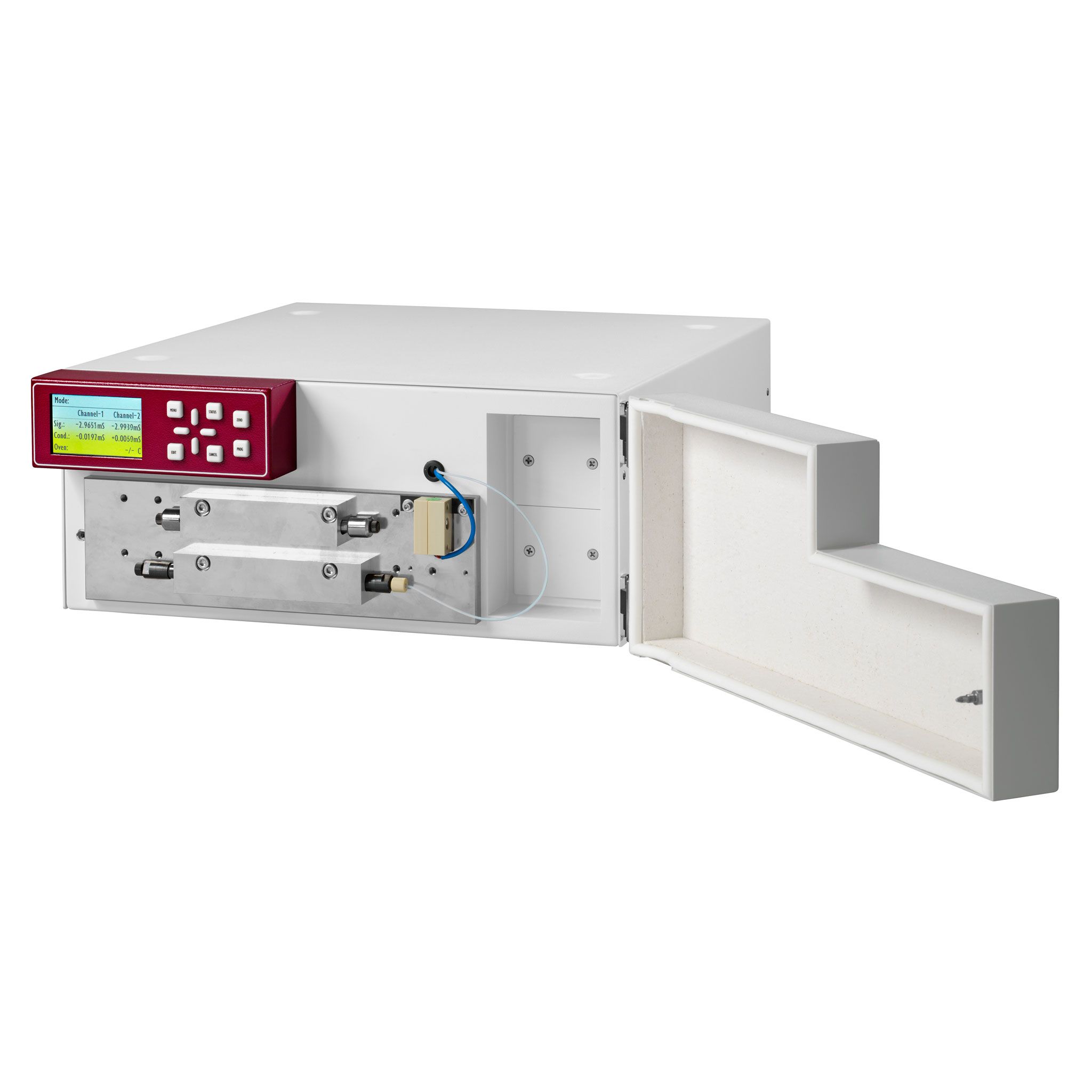

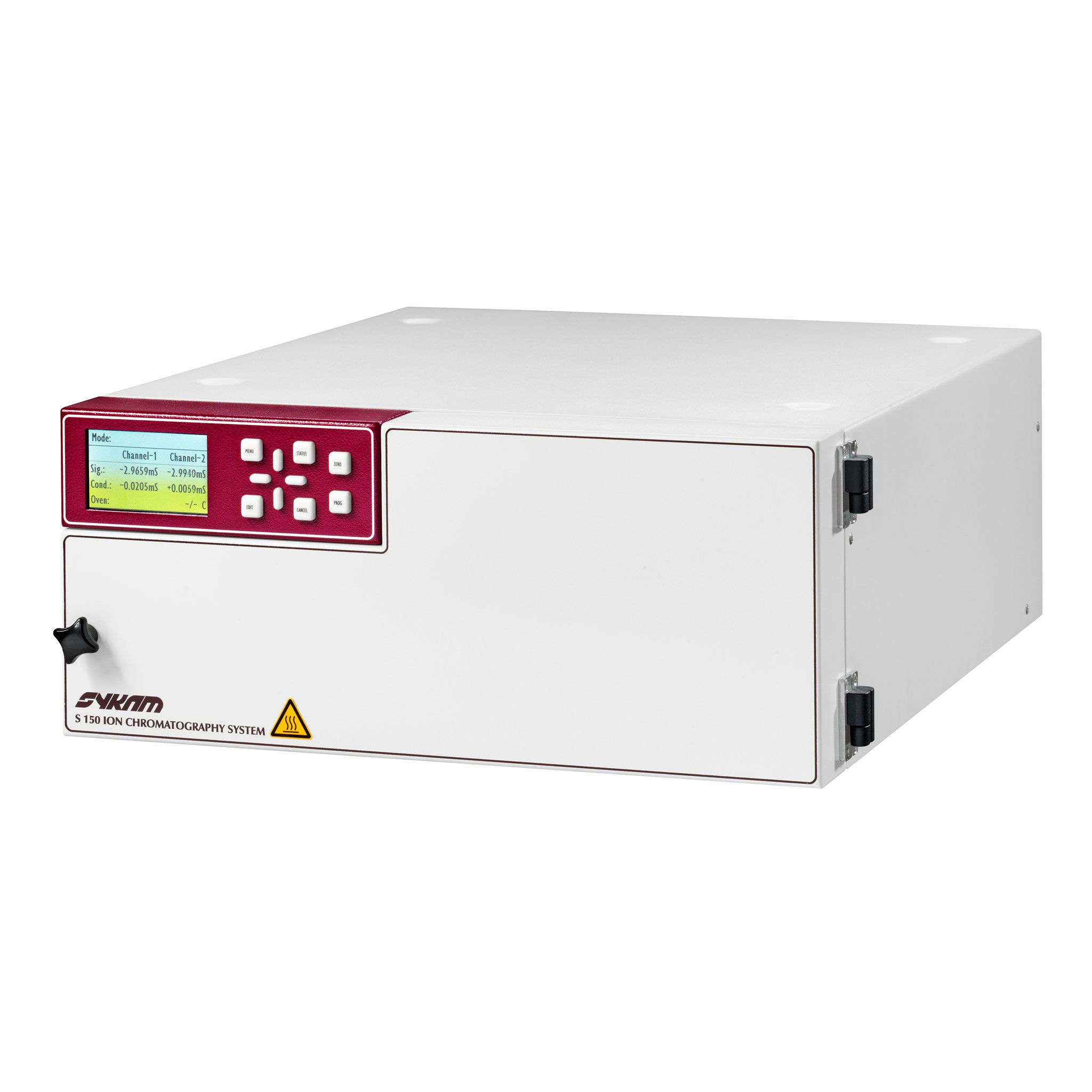

The Sykam S 150 Ion Chromatography System is a modular ion chromatography system for the analysis of anions, cations, transition metals, organic acids and amines.

SKU: S150 Category: Tag:
Sykam Logo

Description

The Sykam S 150 Ion Chromatography System is a modular ion chromatography system for the analysis of anions, cations, transition metals, organic acids and amines.
Sykam offers ion chromatography systems since the early 1990’s. With the introduction of the S 150 ion chromatograph in 2018 Sykam offers a modular versatile ion chromatography system suitable for the analysis of anions, cations, transition metals, organic acids and amines. The modular structure of the S 150 ion chromatography system enables the user to configure a system tailored for the application as well as for specific laboratory environments. Configurations range from a simple low-cost manual ion chromatography system ideal for teaching purposes at laboratory schools, up to advanced automated simultaneous anion/cation analysis systems in GLP/GMP environments.

You are viewing the module. Click here for the complete system information page.

Additional information

Dimensions 47,8 × 39,6 × 16,5 cm
Wetted materials

PEEK, PPS, PTFE, stainless steel

Column oven temperature range

+30 ºC – +100 ºC

Column oven temperature accuracy

< 0.1 ºC

Column oven switching valve

Optional (any S 6000 Series valve)

Measuring range conductivity detector

20 nS/cm – 20000 μS/cm

Flowcell volume conductivity detector

0.76 µl

Auto-surpressor pump system

Membrane pump

Auto-surpressor safety systems

Pressure sensor, pressure valve
