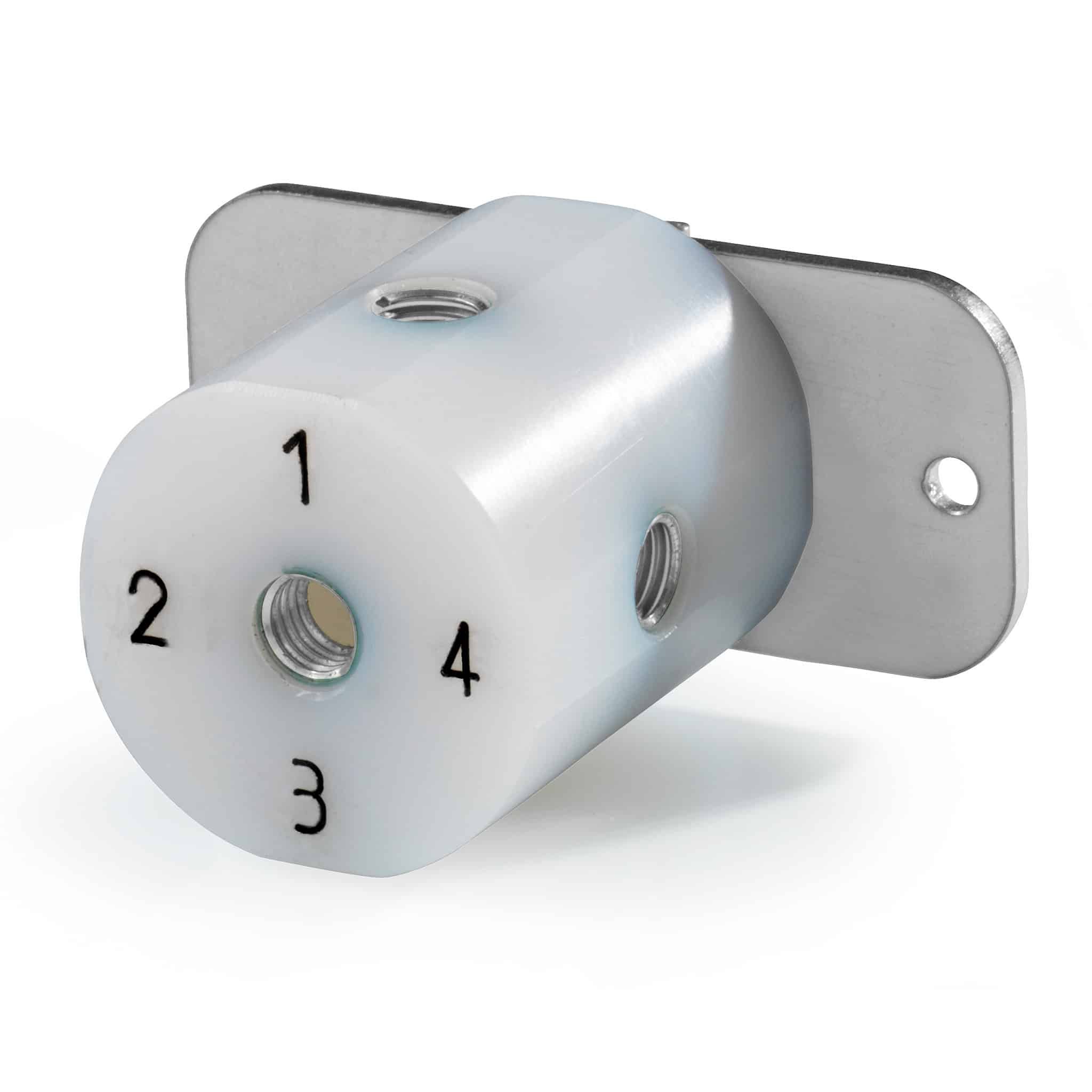

S 683x 4-Pos Selection LC Valve

The Sykam S 683x 4-Pos Selection LC Valve is chemically inert, suitable for aggressive media, maintenance free and available in custom OEM configurations.

SKU: S683X-1 Category: Tag:
Sykam Logo

Description

The Sykam S 683x 4-Pos Selection LC Valve from the low pressure S 6800 Series. The only wetted materials are PTFE™ and PCTFE, both highly inert materials. The valve rotor and valve body is suitable for aggressive media without degradation of the valve or the transported liquid. The robust design needs no sealing parts and is therefore maintenance free.

You can combine the S 683x 4-Pos Selection LC Valve with the S 6510 Fraction Valve Actuator and the S 6515 Multiple Valve Actuator.

Additional information

Max. pressure

10 bar

Connection

1/4" – 28 UNF (1/16" tubing), M8 (1/8" tubing)
