S 6410 Fraction Collector

The Sykam S 6410 Fraction Collector is a low-cost fraction collector with exchangeable racks, integrated collect/drain valve, a simple I/O interface and individual position selection.

Sykam Logo

Description

The Sykam S 6410 Fraction Collector is a low-cost fraction collector with exchangeable racks and individual position selection.

Main features:

  • Integrated collect/drain valve
  • Exchangeable collection racks
  • Free position selection
  • Simple I/O interface

Information about different collector racks is available in the additional information tab. More and custom dimensions are possible on request.

Additional information

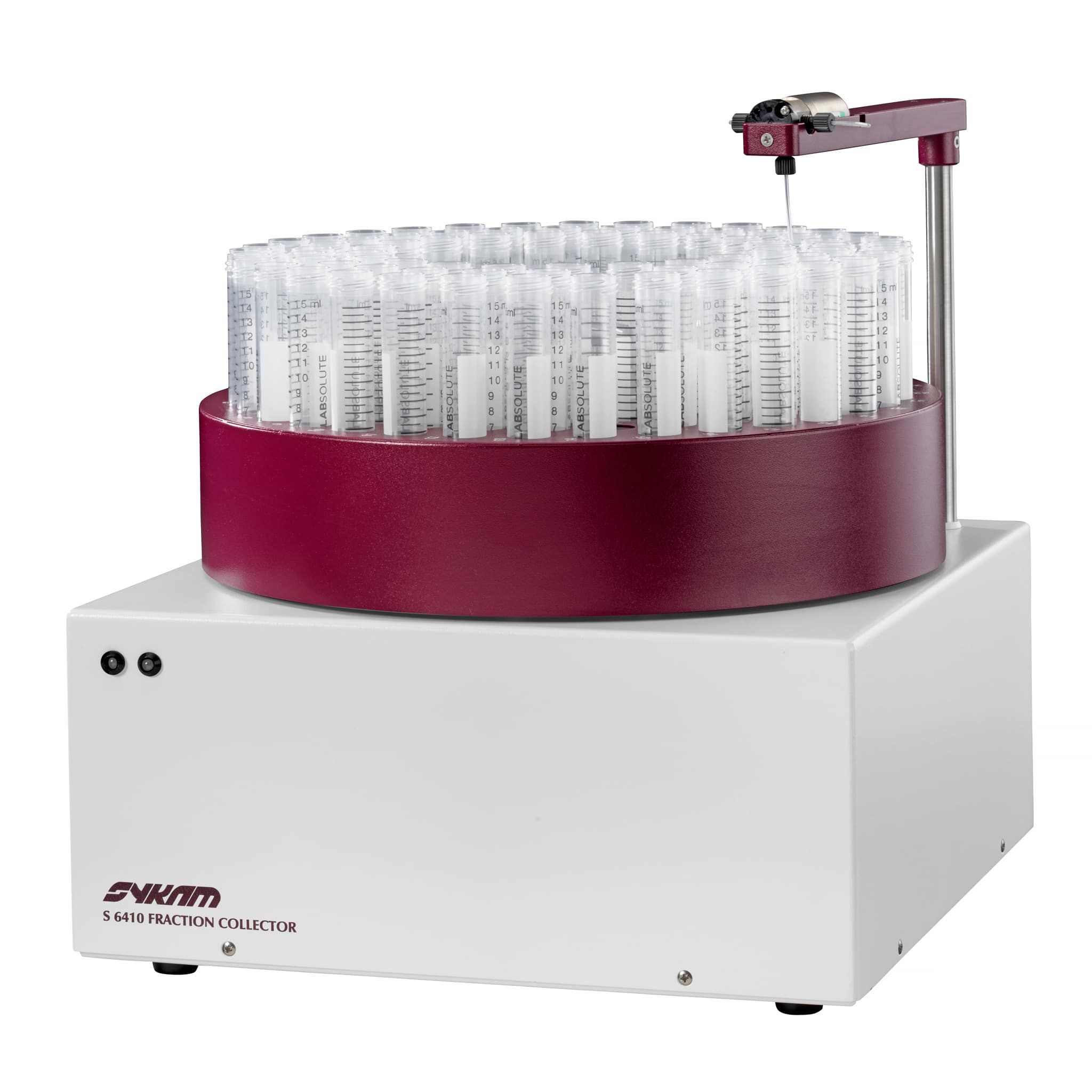

Collector Rack 1

81 x 14 ml tubes (diameter 16mm)

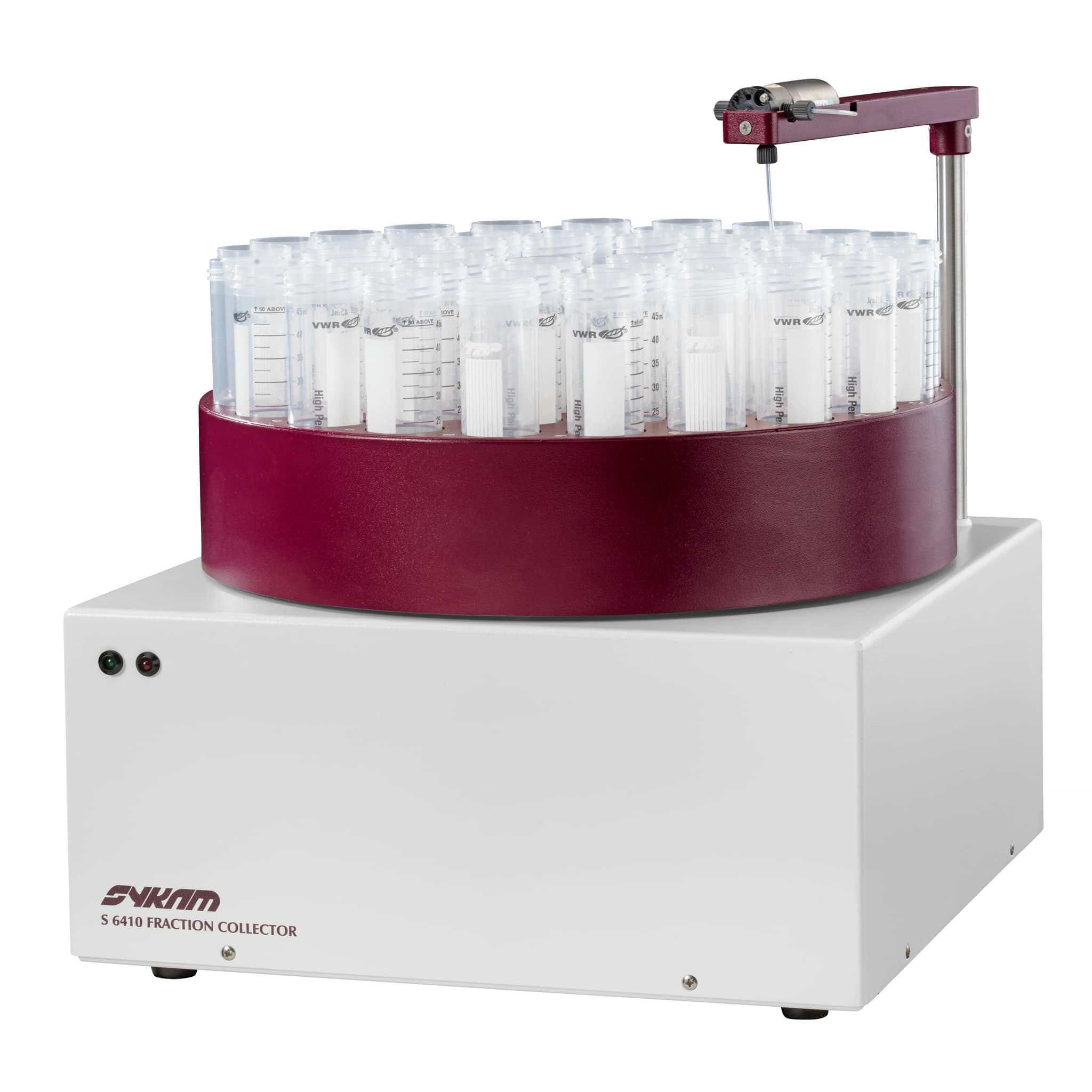

Collector Rack 2

45 x 50 ml tubes (diameter 30 mm)

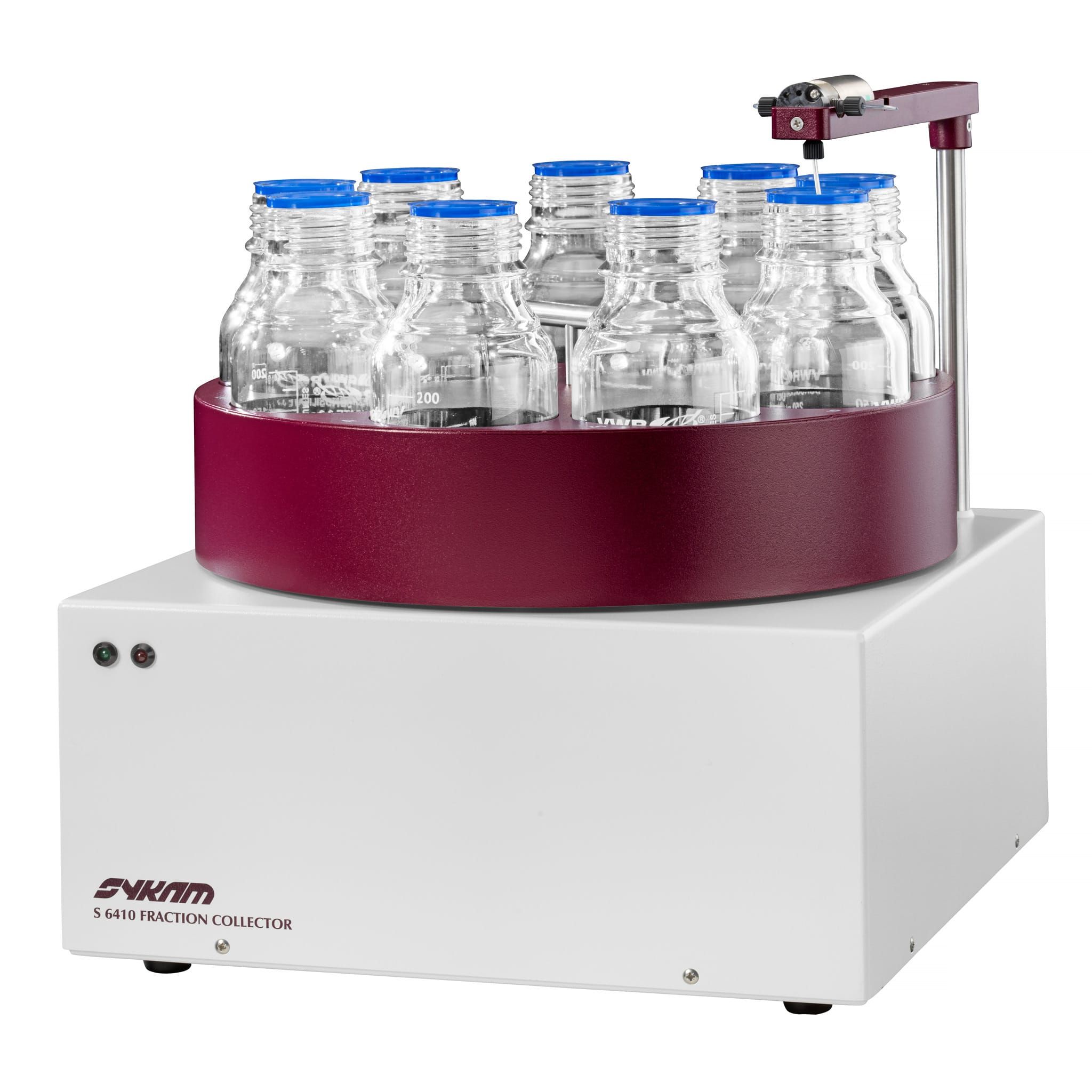

Collector Rack 3

9 x 250 ml bottles (diameter 71 mm)

Other rack dimensions

Available on request

RS232

Collect/drain, init position, next position, previous position, goto position, error reporting

Digital I/O

Collect/drain, init position, next position, previous position, error output

Wetted materials

PEEK, PVDF

Max. flowrate

100 ml/min
