S 6510 Automatic Valve Actuator

The Sykam S 6510 Automatic Valve Actuator can be configured with any multiport switching valve of the Sykam S 6000 or S 6800 valve series.

Sykam Logo

Description

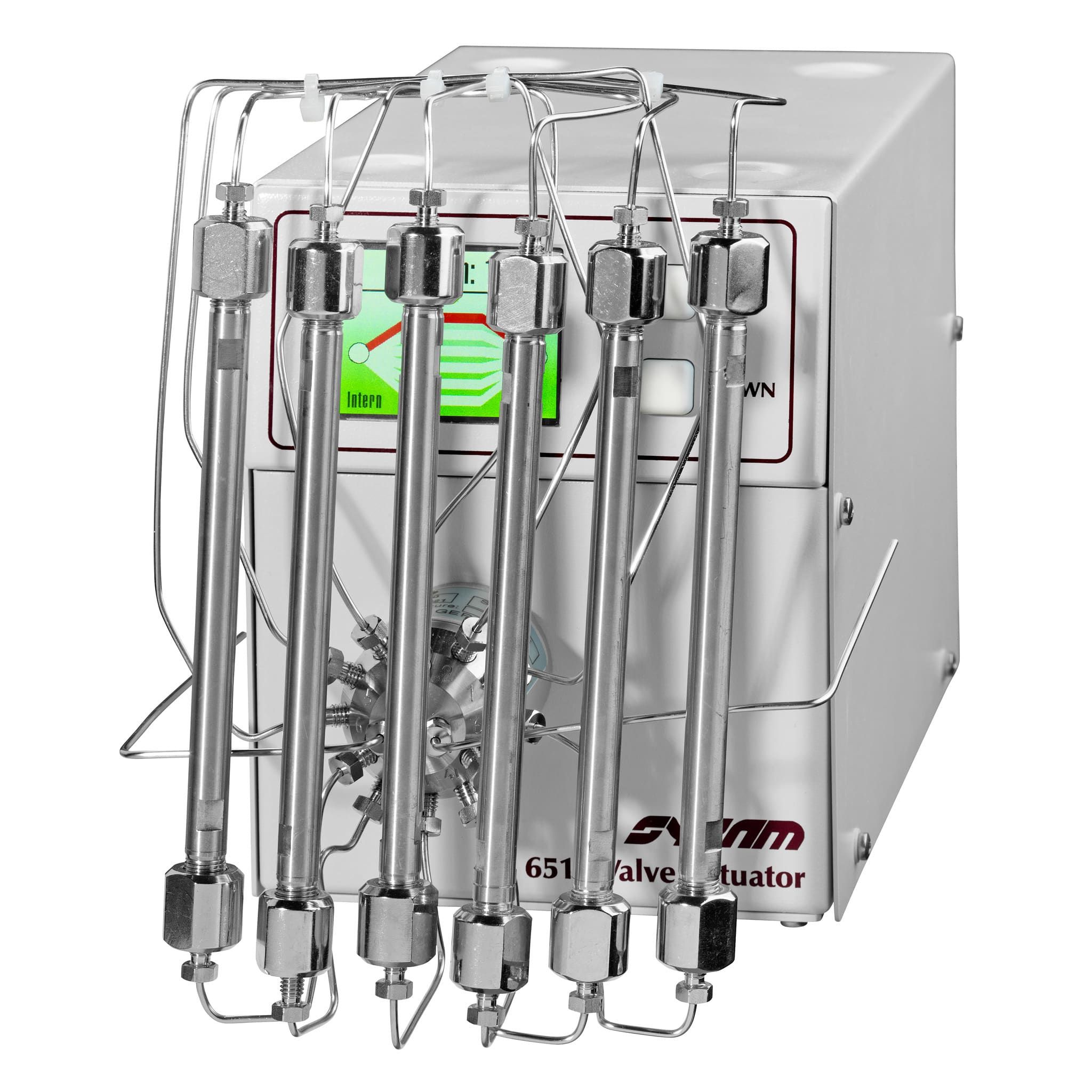

The Sykam S 6510 Automatic Valve Actuator can be configured with any multiport switching valve of the Sykam S 6000 or S 6800 valve series. The S 6510 is also part of some basic S 700 preparative HPLC-system configurations and as possible alternative for a fraction collector when combined with a multiport valve from the S 6800 series. The S 6510 can also be used as a stand-alone unit. The USB, RS232 control and TTL control enables flexible integration with most chromatography systems from other brands as well.

Additional information

Number of valves

1

Valve type

Any valve of the Sykam S 6000 and S 6800 series

Wetted materials

Depending on valve type

Max. pressure

Depending on valve type

Control

USB, RS232, digital I/O

Power Supply

100 – 240 V, 50 – 60 Hz
