MCI Gel™ Size Exclusion Chromatography Columns & Resins

The MCI Gel™ size exclusion columns and resins are based on hydrophilic polyhydroxymethacrylates suitable for the analysis and purification of water soluble polymers like oligosacharides, proteins, PEG etc. The columns are 7.5 mm x 600 mm (ID x L) packed with 10 µm particle size resin. The resins are available with particle sizes of 10 and 30 µm.

On this page: List of available columns and resins, followed by some sample chromatograms.

CQP series size exclusion chromatography columns

Art. Nr.	Product Name	Dimensions ID x L	Particle Size (µm)	Pore Size (nm)	Theoretical Plates Number (TP/Column)	Exclusion Limit (PEG)
0213-01	MCI Gel™ CQP06	7.5 mm x 600 mm	10	12	10000	~1×103
0214-01	MCI Gel™ CQP10	7.5 mm x 600 mm	10	20	6000	~1×104
0215-01	MCI Gel™ CQP30	7.5 mm x 600 mm	10	60	6000	~1×106

CQP series guard columns

Art. Nr.	Product Name	Dimensions ID x L
0213-11	MCI Gel™ CQP06G	4.0 mm x 50 mm
0214-11	MCI Gel™ CQP10G	4.0 mm x 50 mm
0215-11	MCI Gel™ CQP30G	4.0 mm x 50 mm

CQP size exclusion series of resins

Art. Nr.	Product Name	Packing Size (g)	Particle Size (µm)	Pore Size (nm)	Exclusion Limit (PEG)
1213-01	MCI Gel™ CQP06	10	10	12	~1×103
1213-02	MCI Gel™ CQP06	25	10	12	~1×103
1213-03	MCI Gel™ CQP06	50	10	12	~1×103
1214-01	MCI Gel™ CQP10	10	10	20	~1×104
1214-02	MCI Gel™ CQP10	25	10	20	~1×104
1214-03	MCI Gel™ CQP10	50	10	20	~1×104
1215-01	MCI Gel™ CQP30	10	10	60	~1×106
1215-02	MCI Gel™ CQP30	25	10	60	~1×106
1215-03	MCI Gel™ CQP30	50	10	60	~1×106
1-222-01	MCI Gel™ CQP30P	100 ml	30  (!)	60	~1×106

Mitsubishi MCI Gel™ CQP Size Exclusion Resin Catalog

1 file(s) 512.33 KB

Download

Mitsubishi MCI Gel™ Main Catalog (XtalSpeed)

1 file(s) 9.98 MB

Download

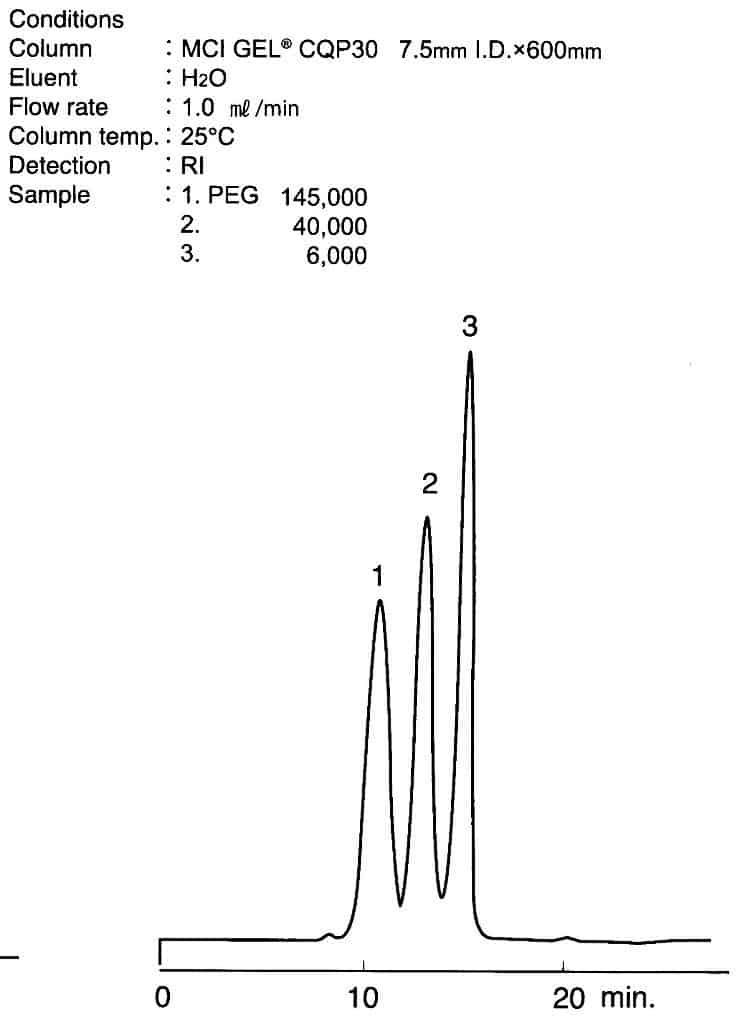

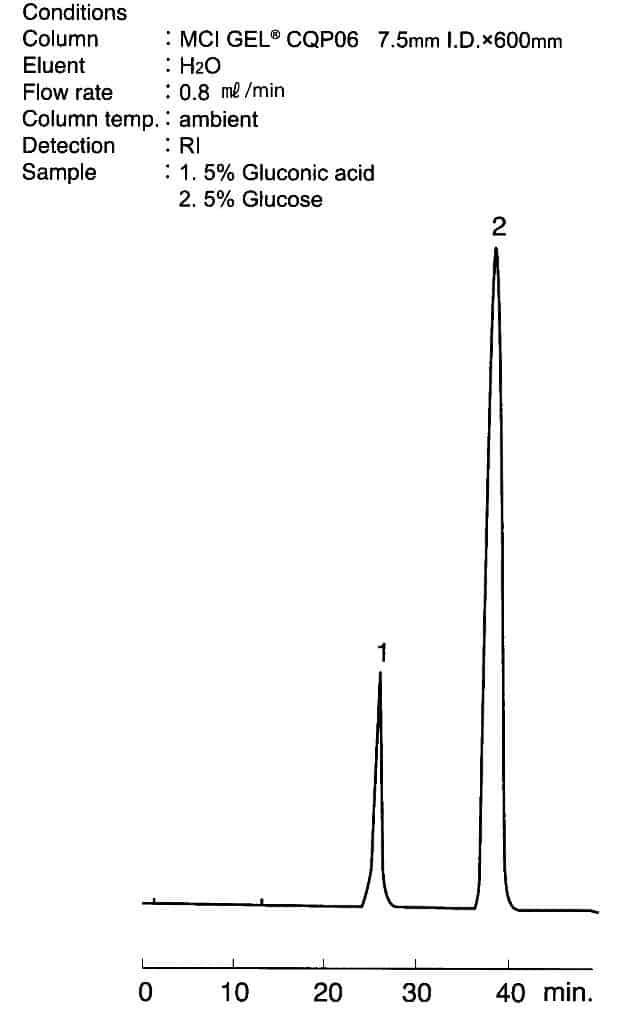

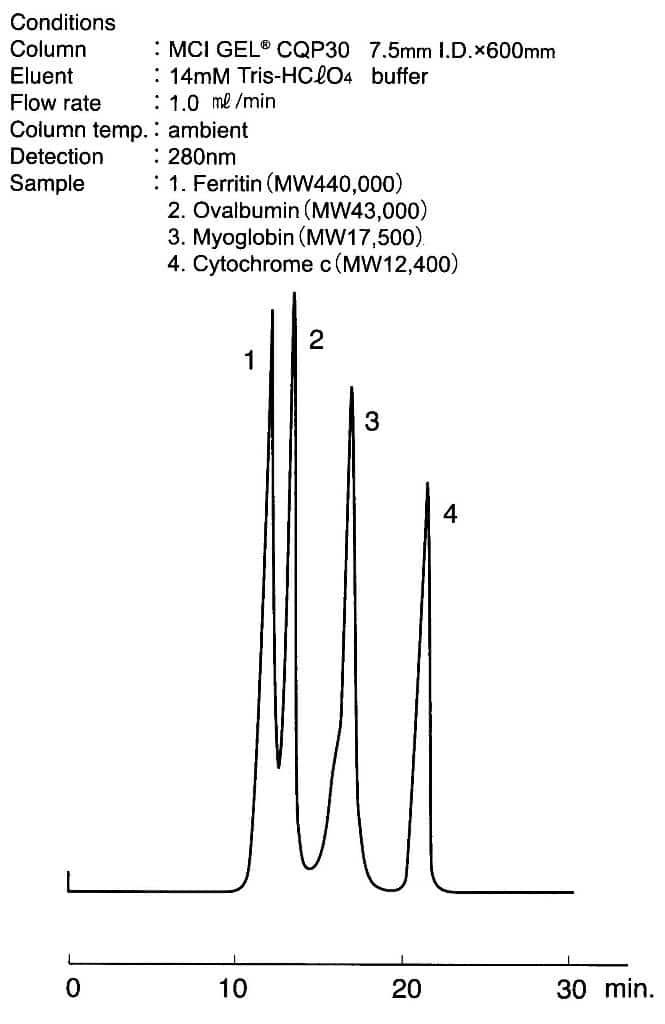

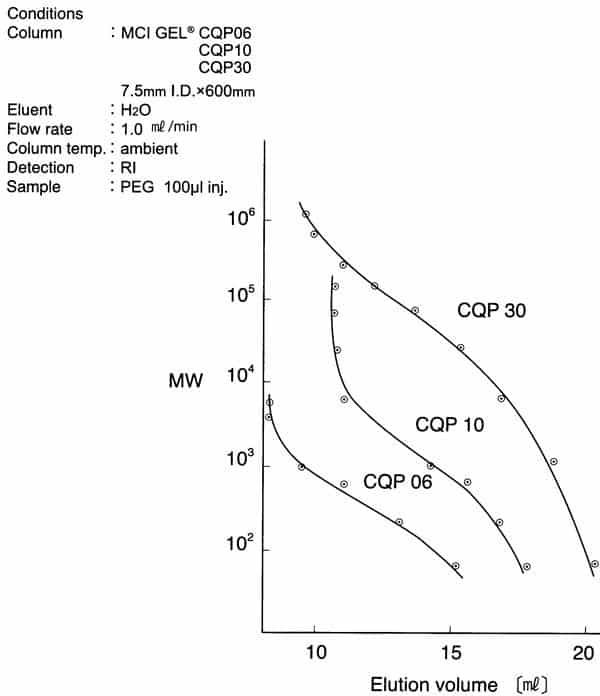

Calibration curves of CQP06, CQP10 and CQP30 resin and sample chromatograms
